Inch-to-Metric Mold Drawings: Keep Conversion and Interpretation as Separate Records

Conversion is arithmetic; interpretation is a design decision

The inch is defined as exactly 25.4 mm, so the multiplication is never the weak point in a mold drawing set. The risk sits around it. That definition covers length only. It says nothing about how a tolerance is applied, what a feature is meant to do, or what a buyer should accept.

Problems start when the two steps merge. Someone rounds a converted number, treats it as the original, and the print quietly stops matching intent. A converted figure is a restatement. A decision about what that figure means for a bore, a shut-off or a fit belongs in a different record.

Planning recommendation: the conversion step may restate a stated value in another unit. Only a recorded interpretation note, signed off by the drawing owner, may change a design decision.

Terminology adds a second trap. Similar-looking drawing terms can carry different manufacturing meanings. As a general observation, keep the original term beside your interpretation and get written confirmation when context stays ambiguous. A conversion also does not establish manufacturability or standards equivalence.

Field	Conversion record	Interpretation note
What it holds	Original stated value and unit, factor, converted value, rounding rule	Feature, reference, tolerance zone, original drawing term
Who may change it	Anyone, if the rule is recorded	Drawing owner only
What it can alter	Only the unit of the stated value	The design decision
Sign-off	Rounding rule approved	Confirmed-by name and date

One exception keeps the paperwork light. Where a drawing note already states a governing unit and a rounding rule, the conversion record can point to that note instead of restating it.

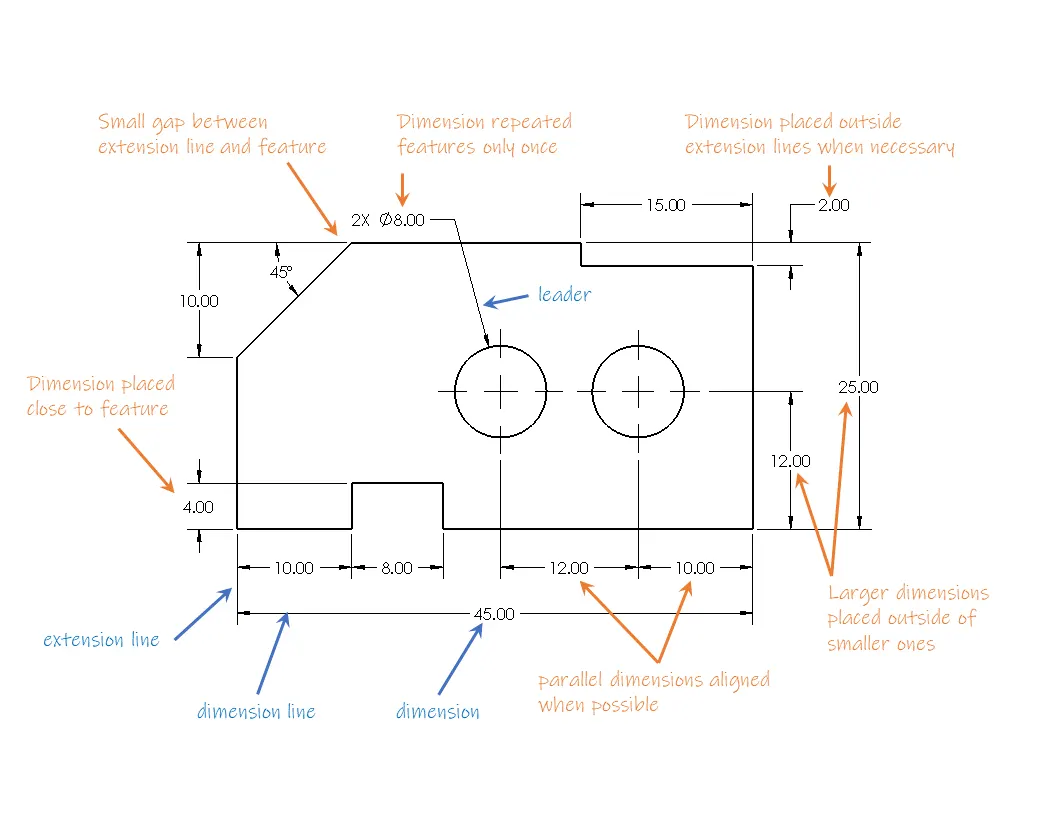

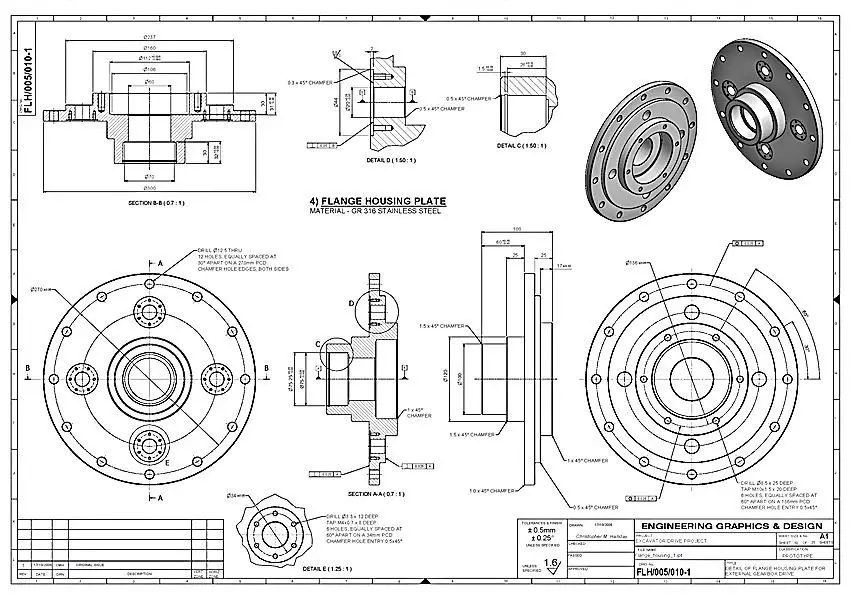

Convert a stated value and keep the original beside it

A value that appears only as decimal inches or only as millimeters hides where it came from. The receiving team cannot tell a clean metric standard size from a number derived by conversion. Showing both values side by side makes the origin visible at a glance.

• Keep the original stated value and unit visible on the drawing or in the linked record.
• Label the other value as converted, and record the factor used.
• Write down the rounding rule, such as the number of decimals kept, and who approved it.
• Round tolerances only under a written rule approved by the drawing owner; do not re-derive a tolerance from the converted nominal.

An unusual-looking converted number is a prompt to ask a question. It is not a reason to lower the priority of the check. As a general observation, a measurement is only useful when feature, reference and context are clear, so a puzzling value should trigger clarification first.

Before entering any single value in the record, you can check the arithmetic with the converter below. It verifies the multiplication only. It does not approve a rounding rule or say anything about design intent.

Check a stated mm/in value before recording it

Converts a single length between mm, cm, m, in and ft so the conversion record can be checked. It verifies arithmetic only and does not decide tolerance, rounding approval or design intent.

Formula: 1 in = 25.4 mm; 1 ft = 304.8 mm (international inch and foot).

ValueFrommmcmminftTommcmminft

Calculate

Enter your values to calculate.

Confirm the drawing unit first. Conversion does not establish a tolerance, datum or design approval. NIST conversion reference

Governing unit and stock components: what to lock before the design is frozen

Three questions need one written answer each: which unit governs design, which governs inspection and acceptance records, and which items stay in their native unit system. Settle them before plate or bore sizes are locked, because changing unit practice after the design is frozen is where silent errors enter.

Standard or stock items are unit-system items, not convertible dimensions. A catalog part that is native to one system should be treated that way, and confirmed before surrounding dimensions are fixed around it. Converting it to suit a local system can leave you with a pocket that no longer fits the replaceable item.

A mixed-unit design can be legitimate. The condition is that every mixed item is listed with its native unit and its governing status, so nobody has to guess.

Comparison field	Supplier A	Supplier B	How to score
Design unit	As quoted	As quoted	Consistent / partly stated / not stated
Inspection unit	As quoted	As quoted	Consistent / partly stated / not stated
Governing unit for acceptance records	As quoted	As quoted	Consistent / partly stated / not stated
Native unit of standard and stock items	As quoted	As quoted	Listed / partly listed / not listed
Conversion-record practice	As quoted	As quoted	Original and converted side by side or not
Discrepancy procedure and named contact	As quoted	As quoted	Named on both sides or not

Compare suppliers on unit-system consistency, not on which unit they prefer. A fully metric quote and a mixed quote can both be sound if each states what governs. Make the answer a PO line item rather than a verbal assurance.

Scope note: one public prototype-tool provider notes that aluminum tools may need added draft and wall thickness because of CNC tool access. That statement describes that provider's own service and is not a general rule for your supplier.

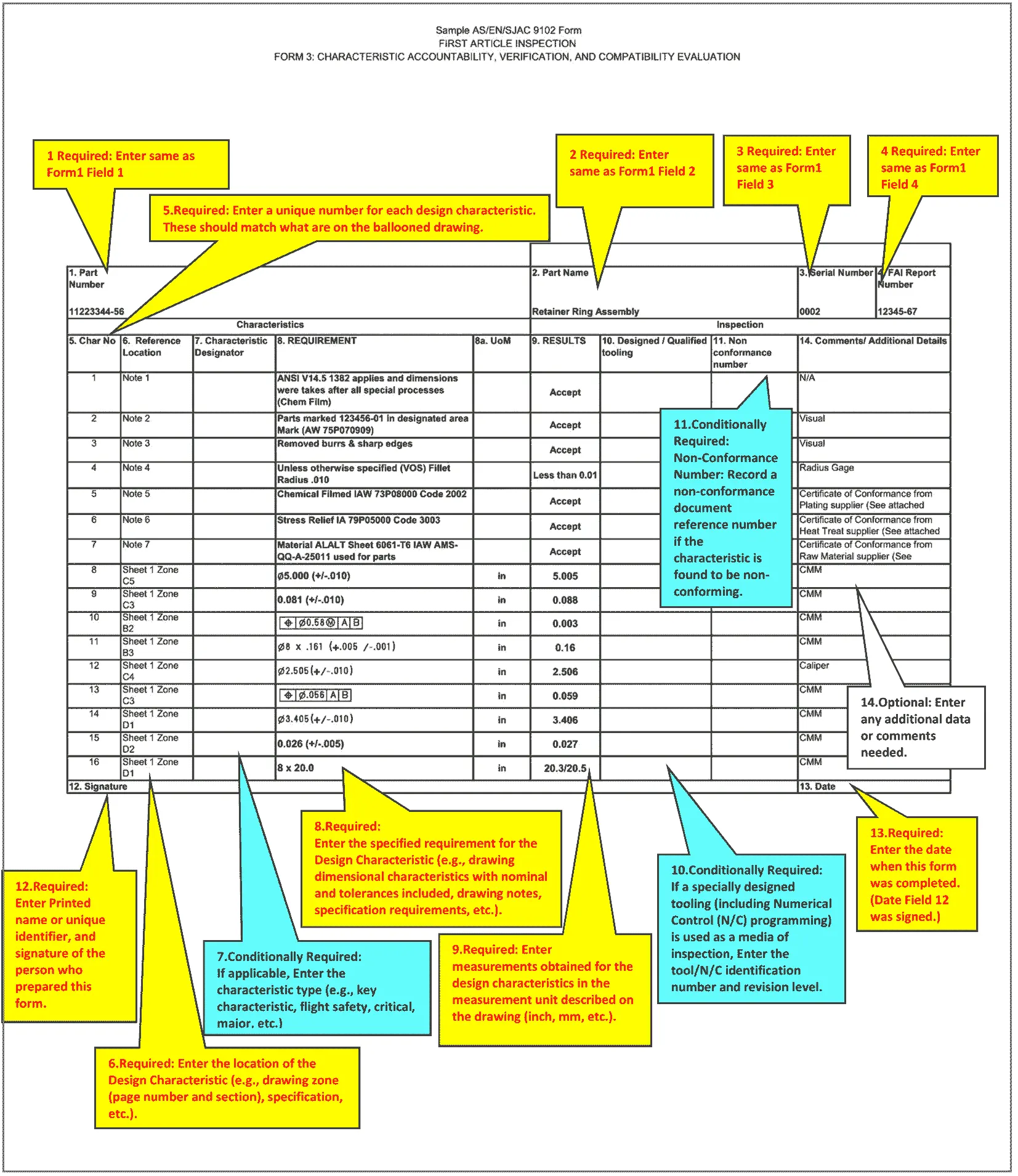

Accepting a dimensional report: fields that make a pass meaningful

An unlabeled pass is not acceptance evidence. As a general observation, a measurement helps acceptance only when the feature, reference and measurement context are clear. Define the fields you will accept before first-article parts arrive, not after a report lands on your desk.

• Feature ID that matches the drawing.
• Datum reference the value was measured from.
• Original stated value and tolerance.
• Converted value, with the factor and rounding rule used.
• Unit stated explicitly on every number.
• Instrument and measurement context.

Compare converted results against the original stated tolerance, not against a tolerance someone re-derived from the converted nominal. Where a report leaves an interpretation gap, record the gap before using the pass to claim the assembled product meets its requirements.

Defect-troubleshooting resources do not fill this role. For example, one material supplier publishes non-binding guidance organized by defect symptoms such as sink marks, flash and warpage. It does not diagnose an individual mold and says nothing about unit handling or report acceptance.

• Governing unit for design declared in the PO.
• Governing unit for inspection declared in the PO.
• Original and converted values shown side by side.
• Conversion factor and rounding rule recorded and approved.
• Standard and stock items listed with native units.
• Report field list agreed before first-article parts arrive.
• Named contact on each side for discrepancies.
• Format for the clarification log agreed.

Three hypothetical situations and what to do in each

The situations below are illustrative, not customer cases. Each shows inputs, alternatives and consequences. Real projects need their own agreed route, quantities and handoff checklist.

Situation 1 (hypothetical): a US buyer issues an inch drawing set, while the supplier's working files and stock components are metric. The supplier asks to convert everything and proceed. Approve conversion as documentation only. Hold a line-by-line interpretation review before any dimension is treated as approval to machine or inspect, and require a governing-unit declaration. Blanket conversion without that review risks the print drifting from intent.

Situation 2 (hypothetical): a first-article report shows all passes, but only as converted metric numbers against an inch drawing. Do not accept on pass status. Ask for feature, datum, unit and instrument context per value, and compare against the original stated tolerance. Accepting the summary alone leaves interpretation gaps unrecorded.

Situation 3 (hypothetical): one supplier quotes entirely metric standard sizes, the other mixes inch legacy sizes and metric stock. Score both on governing-unit clarity, native-unit treatment of stock items and discrepancy procedure, as in the comparison table above. Unit preference alone should not decide the award.

Situation	Approved as	Still required	Owner
1. Blanket conversion request	Conversion as documentation only	Interpretation review; governing-unit declaration	Drawing owner
2. Converted-only pass report	Not yet accepted	Feature, datum, unit, instrument context; original tolerance	Receiving engineer
3. Two quotes, different unit practice	Neither until scored	Native units of stock items; discrepancy procedure	Sourcing lead

Illustrative arithmetic (not a project value): 0.250 in x 25.4 mm/in = 6.35 mm exactly. Rounding to 6.3 mm moves the value by 0.05 mm down; rounding to 6.4 mm moves it 0.05 mm up. Whether 0.05 mm matters depends on the tolerance zone and the feature, which only an interpretation note can state. The arithmetic never answers that.

If your drawing set and quote records are ready, a tooling audit request can be scoped as a drawing-and-record review. Bring the checklist above so the scope covers unit governance, not only the numbers.
