What a Useful Injection Molding DFM Review Should Actually Answer

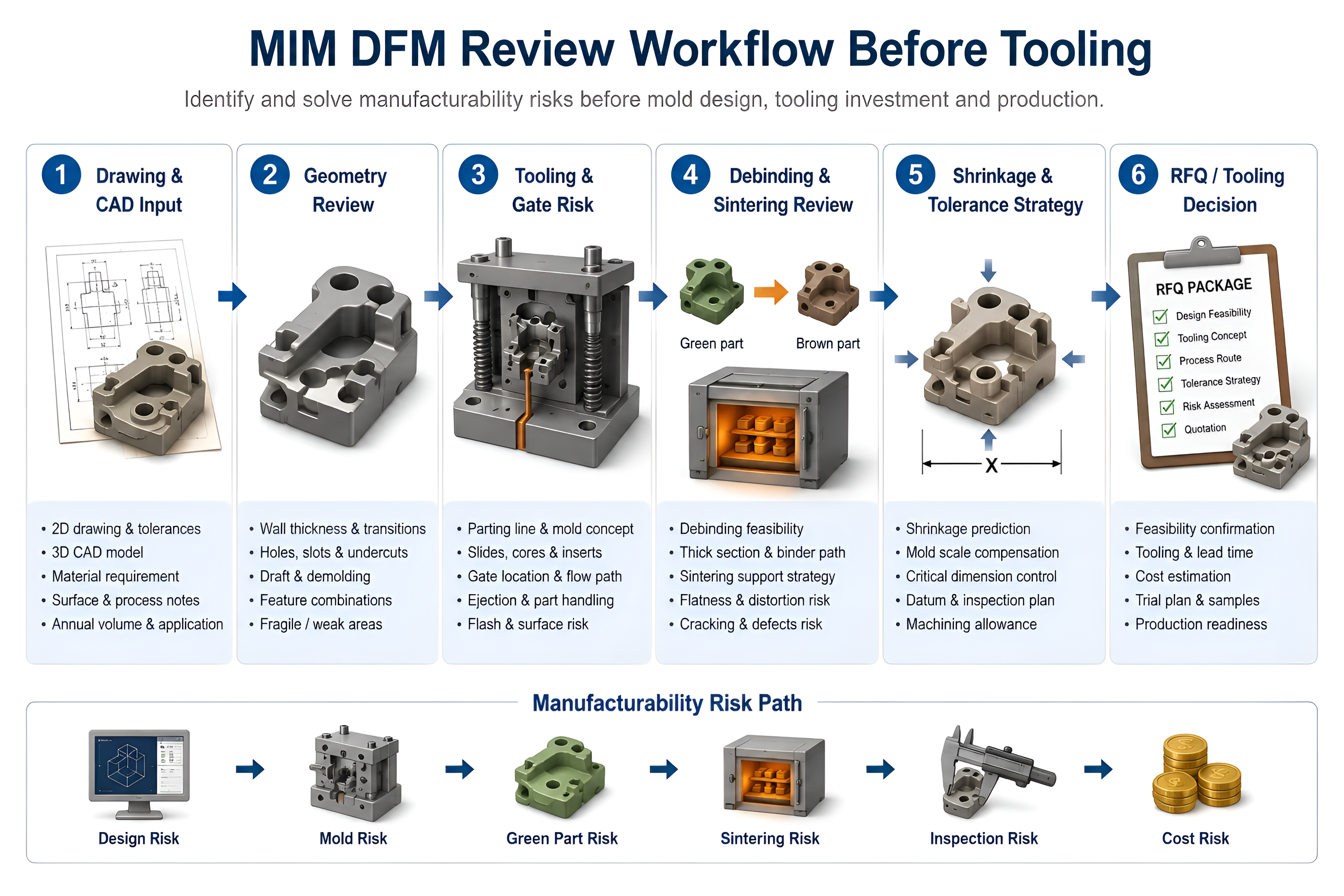

Start with the decision: can tooling be released, and on what conditions?

A DFM review is worth paying attention to when it lets your team say yes, yes-with-conditions, or no to tooling release. Slide decks with red circles describe observations. A release decision needs issues, owners and a statement of which items block the tool.

Treat the action list as the acceptance record. Screenshot count and slide polish tell you little about whether risk was closed. A useful test: count the rows marked as blocking, then count how many of those have a named decision owner and closure evidence. Any blocking row without both means the status is hold, not release.

Release status	What it means	What the record must show
Release	No open blocking items	All blocking rows closed, with revision and closure evidence
Release with conditions	Tooling may start; named items stay open	Each open item has an owner and an agreed date, plus a note on what it affects
Hold	At least one blocking item unresolved	The specific blocker, who must decide, and what input is missing

Practical exception: a few non-blocking items can stay open at release if each has an owner and an agreed date. The record must say so explicitly; silent open items are the risk.

Column	Purpose
ID and revision	Lets later changes be traced to the version reviewed
Issue and reason it matters	Separates a real risk from a cosmetic preference
Recommendation or alternative	Gives your team something to decide on
Decision owner	Prevents items sitting between buyer and supplier
Blocks release (Y/N)	Turns observations into a gate
Status and closure evidence	Shows what was actually confirmed, and how

Prove what was reviewed before trusting what was concluded

A model that opens without errors is not automatically a complete manufacturing brief. Before relying on any conclusion, confirm which geometry, annotations and supporting documents the reviewer actually used, and which information could not be read. Conclusions that depend on missing inputs should be flagged as such.

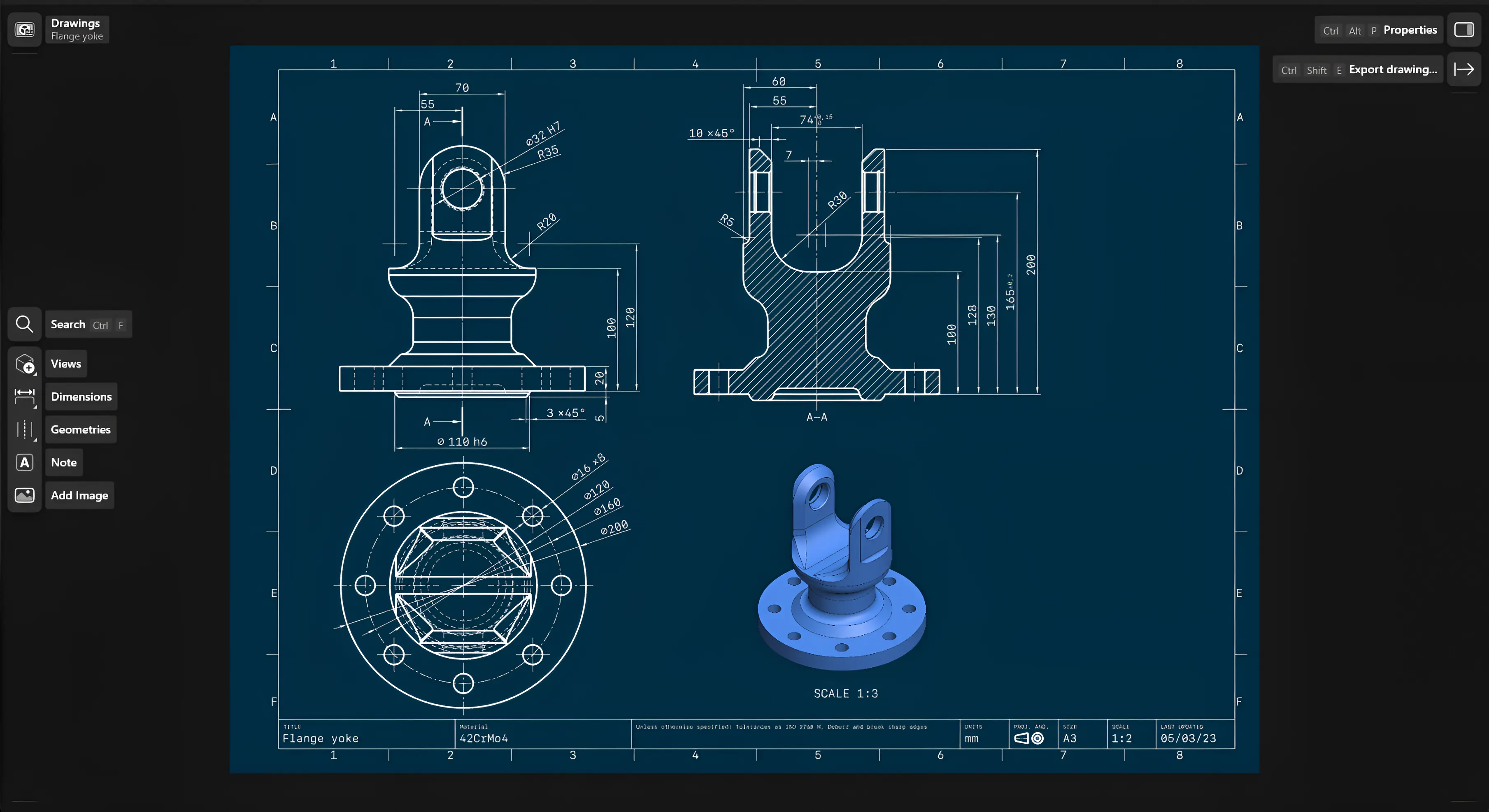

• 3D model and drawing, each with revision and date received
• Resin requirement or grade information, if known
• Cosmetic or appearance standard, even if still draft
• Expected annual and lifetime volume range
• Mating-part information and critical functional requirements
• A written list of anything unreadable or missing, and the conclusions that depend on it

Keep units explicit on the model and the drawing. NIST states that the inch is defined as exactly 25.4 mm, so a conversion is arithmetic. A conversion note only shows that numbers can be restated; it says nothing about whether a feature can be molded.

Illustrative arithmetic: a 0.080 in wall note converts to 0.080 x 25.4 = 2.032 mm. Writing the unit next to every value avoids misreading between inch and metric notes. Whether 2.032 mm suits the part is a separate engineering judgment.

Input	Revision / date	Read fully?	Unreadable or missing	Assumption made	Who confirms
3D model		Y / N
Drawing		Y / N
Resin requirement		Y / N
Cosmetic standard		Y / N
Volume forecast		Y / N
Mating-part info		Y / N

What a geometry check, an engineering interpretation and a production test can tell you

These three evidence types answer different questions, and a report that blends them invites over-reading. A geometry check says what the CAD shows. An engineering interpretation says what that geometry is likely to mean for molding. A production test says what actually happened. Label each conclusion with the type it rests on.

Evidence type	Question it answers	What it cannot prove
Geometry check	Does the model contain the features, thicknesses and angles described?	That the part fills, cools or ejects acceptably
Engineering interpretation	Where are the likely molding risks and what changes would reduce them?	That the risk will or will not occur in the actual tool
Tool trial or production test	Does the real tool and process produce acceptable parts?	That the result holds at other volumes, resins or conditions

Public defect guidance can help frame questions. BASF publishes an injection molding troubleshooter that lists common molding problems, including sink marks, flash and warpage, and states that its advice is non-binding. It can prompt you to ask which of those defect risks the report discusses for your part. It does not diagnose your mold and is not a DFM acceptance standard.

Also keep scopes separate. Design delivery, manufacturability review, tool manufacture and production acceptance are different things. The handover should say which have been checked and which remain with the receiving team. DFM acceptance should never be recorded as tool-trial, dimensional, functional, appearance or customer approval.

Check what the review says about the mold concept

Part geometry and mold concept affect each other, so a review that comments only on part geometry leaves open how the tool will be built. Ask the reviewer to state, for each mold-concept topic they consider relevant to your part, whether it was assessed, not assessed, or deferred. A preliminary concept is enough; you do not need the supplier's internal design logic.

Mold-concept topic	Status in the report	Why you want it recorded
Topics the reviewer considers relevant to this part	Stated / not assessed / deferred	So nobody assumes an unreviewed topic was cleared
Cosmetic zones and where the tool may leave marks	Stated / not assessed / deferred	So appearance expectations are agreed before steel is cut
Inserts, mechanisms or other tool complexity	Stated / not assessed / deferred	So cost and maintenance assumptions are visible

Keep the product-resin decision and the mold-steel decision visibly separate in the report. They are made for different purposes, and a report that merges them hides which requirement drove which choice. Ask for each to be recorded with its own basis, owner and open questions.

Practical exception: a very early prototype tool may justify a thinner concept review. The report should still list which topics are deferred so nobody assumes they were reviewed.

Close tolerance and validation gaps before commitments are made

Do not accept tolerances simply because they appear on the drawing. Ask which dimensions are critical, which datums they refer to, how they will be measured and under what conditions. Record these before release so the later dimensional results can be judged against something agreed.

Hypothetical scenario A: a consumer-product team has a STEP model, a drawing and a generic resin family note, but no approved cosmetic standard or volume forecast, and wants to start tooling next month. Alternative: wait for every input. The consequence of waiting is lost schedule. A better route is a scoped review with open items marked, making cosmetic zones and the volume range explicit release conditions.

Hypothetical scenario B: a supplier sends marked-up screenshots with no action list and no statement of what was not reviewed. The consequence of accepting it is that nobody owns the open risks. Reject it as a release basis and request an action list and scope statement before any commercial commitment.

Hypothetical scenario C: a program has a prototype tool and a planned production tool, and the team wants to reuse the prototype DFM for the production tool. The scopes differ. Before production release, put the volume and tool-life expectations for each tool side by side, then record where they differ and who agrees the difference. Where they differ, treat the earlier DFM as background rather than as the acceptance record.

Critical dimension	Datum	Measure method	Conditioning	Verified at	Sign-off
				Stage	Name

• Volume and tool-life range for each tool, agreed in writing
• Sampling stages and who approves each one
• Evidence expected at each stage: dimensional, functional, appearance, material
• Packaging and handling requirements for samples
• Engineering-change process and timing
• A statement of which scopes the receiving team still owns after handover
